Residential outdoor shade

Residential cantilever umbrellas Flexible shade, exactly where you need it.

Shade a pool, patio, courtyard or outdoor dining area with an Australian-made Pacific Classic cantilever umbrella that rotates, tilts and closes away when not required.

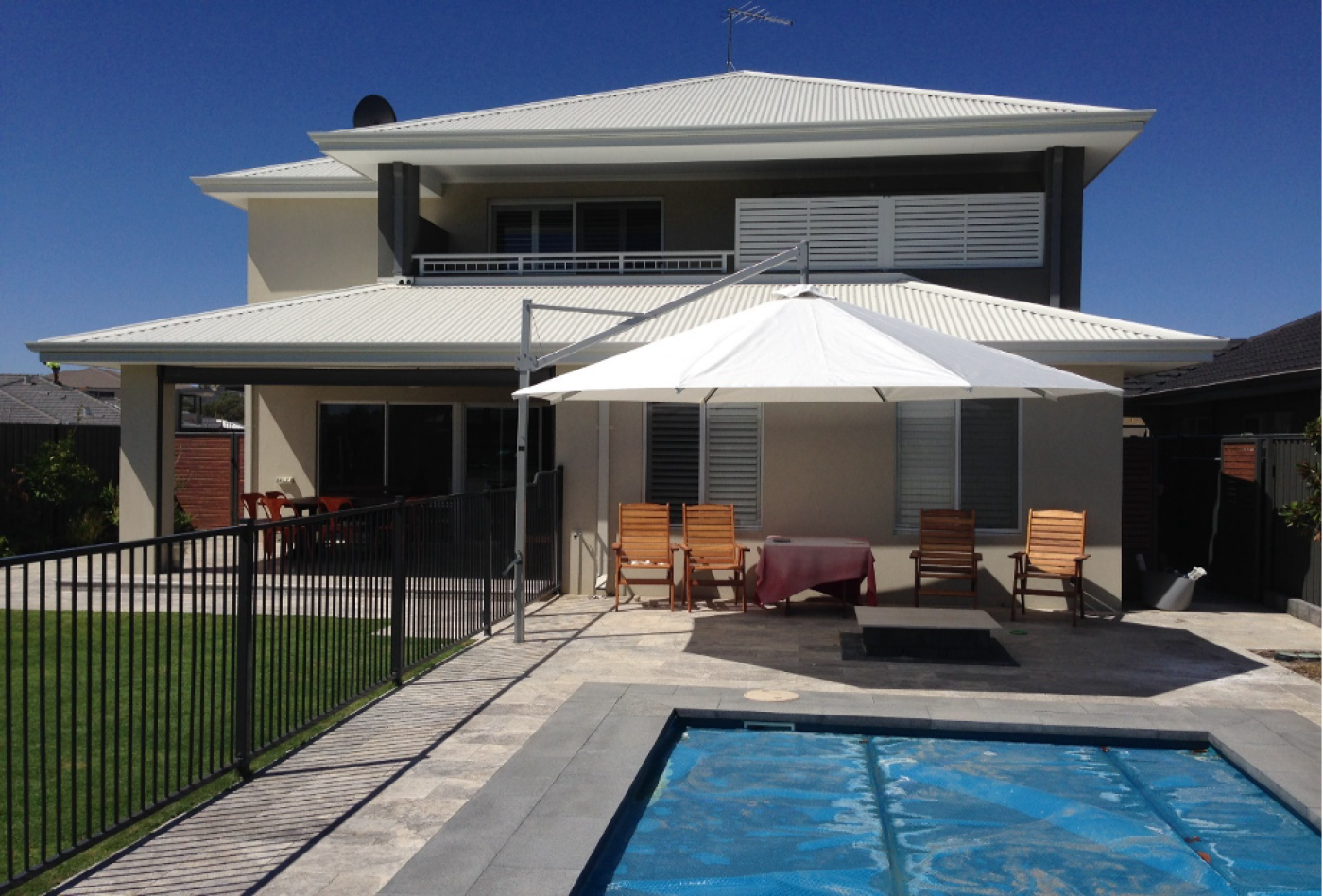

White Pacific Classic cantilever umbrella beside a swimming pool
locking rotation
360°
tilt positions
3
Australian made
100%
frame & canopy warranty
2 year

Pacific Classic cantilever umbrella

Flexible shade for residential spaces.

Create comfortable shade without placing a centre pole through your entertaining area. Choose an octagonal or square canopy, frame colour and installation position to complement your home.

  • Australian made

    A locally made structural aluminium frame with quality stainless-steel fittings and a hot-dipped galvanised base.

  • Simple operation

    An internal winch makes opening and closing easy. The canopy rotates 360° and offers three tilt positions.

  • Outdoor acrylic canopy

    100% dope-dyed acrylic canvas is water resistant, UV protective, treated against mould and mildew, and designed to resist fading.

  • Made to suit your style

    Choose canopy and powder-coated frame colours, plus straight, scalloped or no valance.

  • Two-year warranty

    The Pacific Classic frame and canopy are backed by a two-year warranty.

request free measure & quote

Pacific Classic umbrella sizes and specifications

The Pacific Classic is available with octagonal or square canopies. Its structural aluminium frame rotates through 360 degrees and locks at any position, with three tilt positions for flexible shade throughout the day.

Standard and heavy-duty sizes

Octagonal canopies are available in 2.5 m, 3.0 m, 3.6 m, 4.0 m and 4.5 m sizes. Heavy-duty octagonal models are available in 4.0 m, 4.5 m and 5.0 m. Square canopies are available with 2.5 m, 3.0 m, 3.2 m and 3.6 m sides.

Heavy-duty models use a reinforced frame for exposed coastal conditions and demanding commercial sites.

Model A C D E F G H I Wind rating
Octagonal 2.5 m 2500 2700 2990 1960 2100 2720 2705 965 100 km/h
Octagonal 3.0 m 3000 2700 3045 1980 2150 3050 2870 725 100 km/h
Octagonal 3.6 m 3600 2700 3230 1920 2060 3750 2930 710 100 km/h
Octagonal 4.0 m / HD 4000 2840 3450 2160 2240 4150 3250 760 80 km/h
Octagonal 4.5 m / HD 4500 2840 3570 2100 2240 4400 3400 700 50 km/h
Octagonal 5.0 m HD 5000 2840 3620 2000 2120 4670 3420 420 50 km/h
Square 2.5 m 2500 2700 2990 1960 2110 2720 2705 685 90 km/h
Square 3.0 m 3000 2700 3045 1980 2125 3050 2870 120 80 km/h
Square 3.2 m 3200 2840 3370 2020 2160 3630 3060 390 64 km/h
Square 3.6 m 3600 2840 3450 2100 2240 3950 3250 250 53 km/h

Dimensions are in millimetres and should be used as a guide. Sail City will confirm the correct model, clearances, footing and wind suitability for your site.

Canopy and frame colours

Canopy colours include Sapphire, Navy, Marine Blue, Burgundy, Heritage Green, Grey, Natural, White, Cappuccino, Charcoal and Black. Powder-coated frame colours include White, White Birch, Primrose, Stone Beige, Silver, Claret, Green, Charcoal, Navy and Black.

Installation

A secure base, professionally installed.

Residential installation is normally completed over two visits: the footing is concreted first, then the umbrella is fitted after the base has cured.

request free measure & quote contact us
  1. 01 Site measure

    We assess the area, clearances, orientation and exposure, then recommend the right canopy and frame.

  2. 02 Prepare the footing

    A hole approximately 600 × 600 × 900 mm is excavated and filled with concrete to form a secure in-ground base.

  3. 03 Allow the base to cure

    The concrete is left for approximately one week before the umbrella is fitted.

  4. 04 Install and demonstrate

    We assemble the umbrella, set its operating positions and show you how to open, close, rotate and tilt it.
